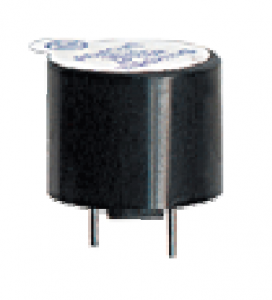

EMX-7T01PD

Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 73.5 Measured 83 dB at 1.5V & 10cm
Frequency kHz 2.4 2.4 2.4
Voltage V 1 1.5 2
Current mA 50 2400Hz ; 1.5V p-p Square Wave 1.5V DC
Temperature ºC -20 70
Width mm 12
Height mm 10
Termination pin Pin separation: 6.50mm

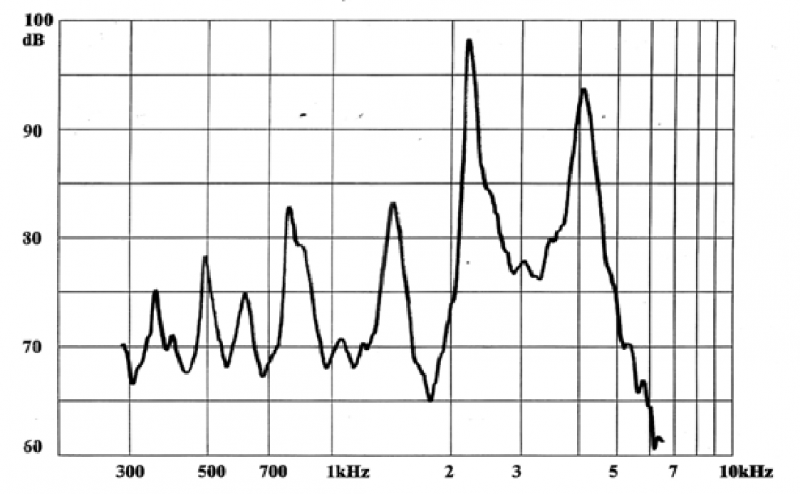

Characteristic Response:

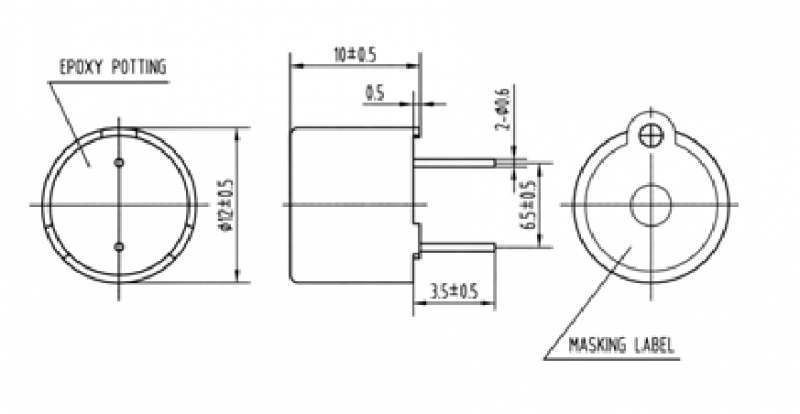

Dimension Drawing:
