EMX-8T12P

Features:
Low frequency
Low voltage
Small and slim size
Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 75.46 Measured 85 dB at 10cm
Frequency kHz 2.05
Voltage V 9 12 15 peak to peak voltage of square wave
Current mA 40
Available Input Impedance Ω 115 ± 5
Temperature ºC -25 70
Width mm 16
Height mm 14
Weight g 5
Termination pin
Characteristic Response:

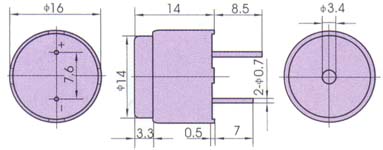

Dimension Drawing:
