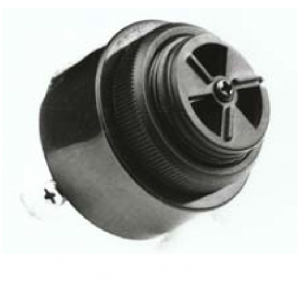

FM-12F-900A

Characteristic Min Typical Max Notes
Type Piezo
Excitation Internal Driven Tone: Continuous
Sound Pressure Level dB at 30cm 96 Measured 90 dB at 12V-DC & 60cm
Frequency kHz 2.5 3 3.5 Rated frequency ±0.5
Voltage V 6 12 16 DC
Current mA 20 12V DC
Temperature ºC -20 70
Width mm 43
Height mm 33
Termination pin Pin separation: 32.00mm

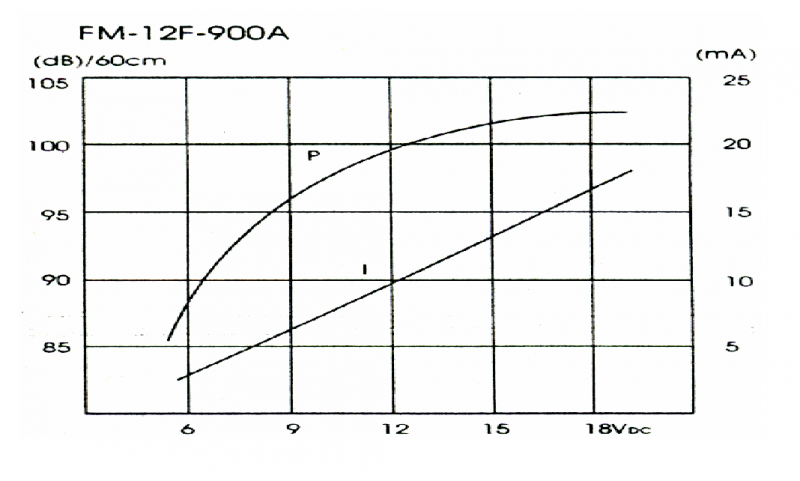

Characteristic Response:

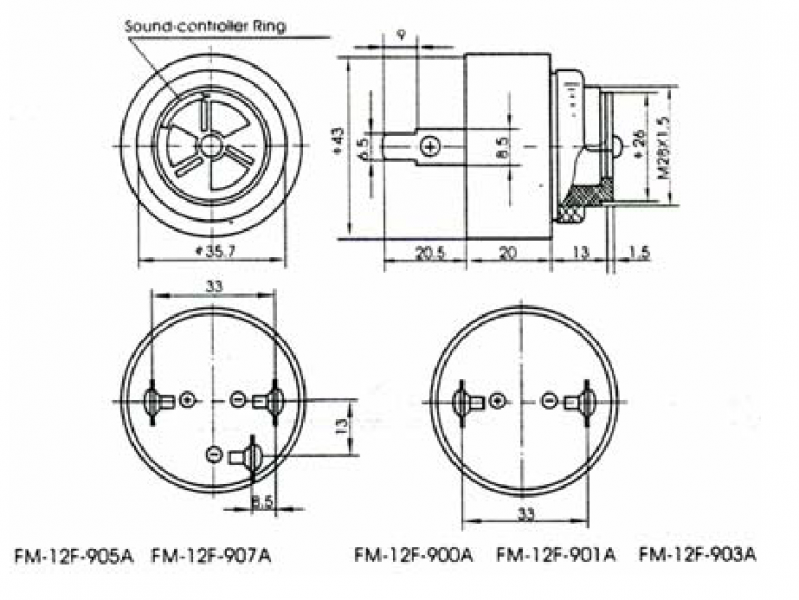

Dimension Drawing:
