SWM-109.5I27-8N5R

Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 96.4 Measured 88±dB(SPL) at 1W and 0.5m. Frequencies: 1.0 / 1.2 / 1.5 / 2.0kHz
Power W 5 8
Frequency kHz 0.6 ±20%
Available Input Impedance Ω 8
Width mm 17.4 109.5
Height mm 27

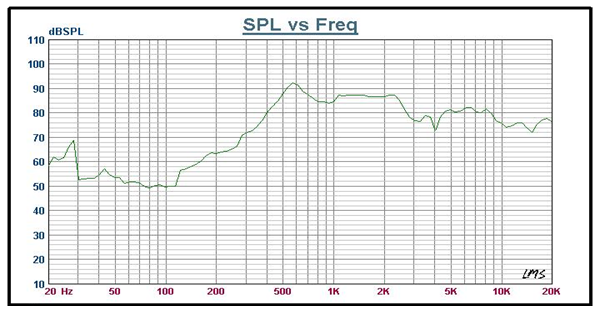

Characteristic Response:

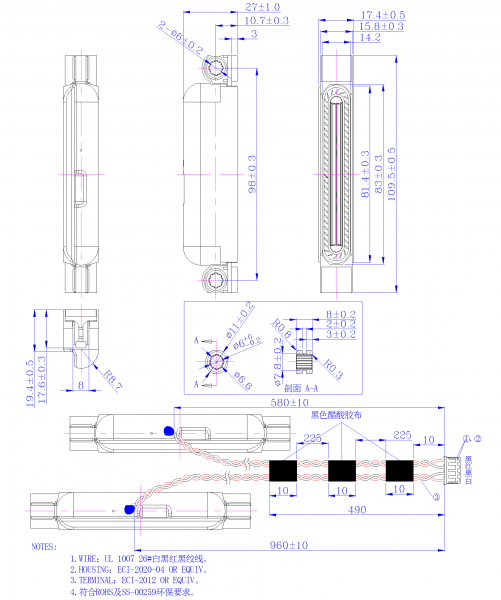

Dimension Drawing:
