SWM-28R4.7-B1R

Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 82.5 Measured 102±3dB(SPL) at 1W and 0.1m. Frequencies: 800 / 1000 / 1200 / 1500Hz
Power W 1 1.5
Frequency kHz 0.7 ±20%
Width mm 28
Height mm 4.7

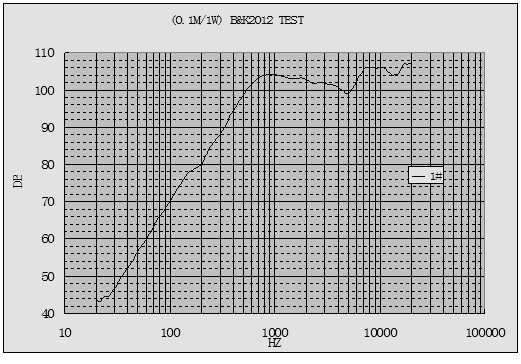

Characteristic Response:

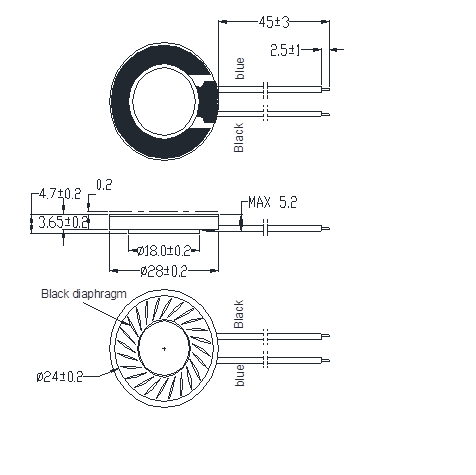

Dimension Drawing:
