SWM-30R5.9-8B1R

Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 92 Measured 87±3dB(SPL) at 1W and 0.3m. Frequencies: 1.5 / 2.0 / 2.5 / 3.0kHz
Power W 1 2
Frequency kHz 0.75 ±20%
Available Input Impedance Ω 8
Width mm 30
Height mm 5.9

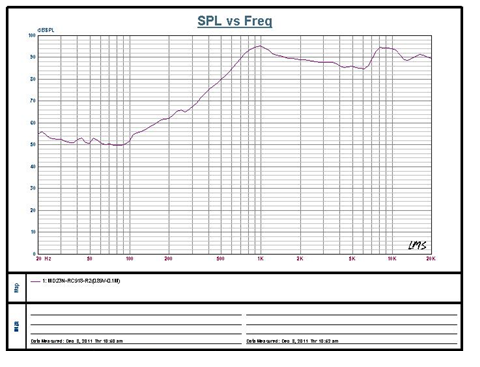

Characteristic Response:

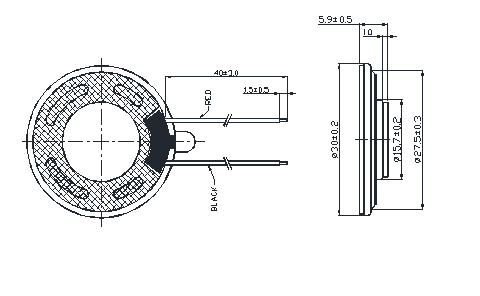

Dimension Drawing:
