SWM-98.4L20-16N3R

Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 102.5 Measured 83±3dB(SPL) at 1W and 1m. Frequencies: 800 / 1000 / 1200 / 1500Hz
Power W 3 4
Frequency kHz 0.4 ±20%
Available Input Impedance Ω 16
Width mm 23 98.4 ±0.5mm
Height mm 20 ±0.5mm

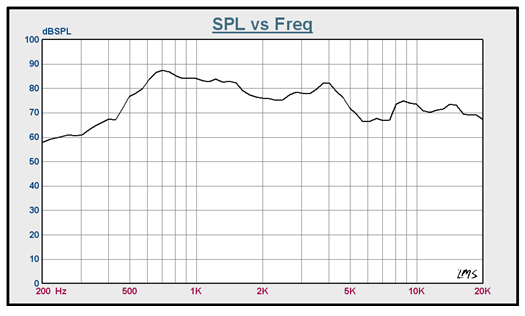

Characteristic Response:

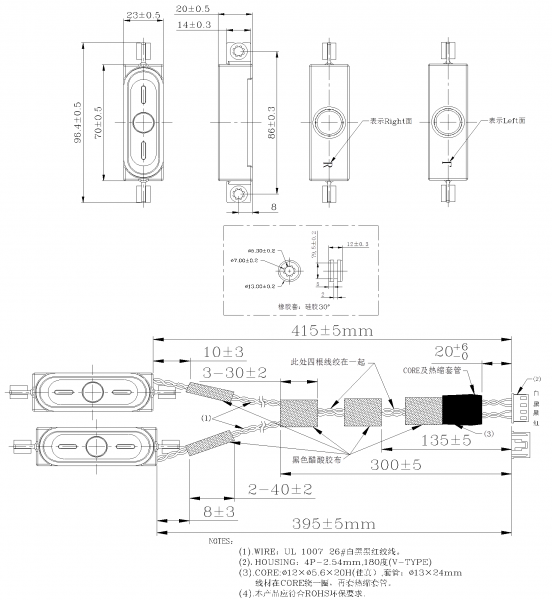

Dimension Drawing:
