Features:
Fast Recharge in 2.5 hours
Li polymer Reliability
Only 4mm thick
| Minimum | Characteristic | Maximum | Notes | |
| Chemistry | Li | |||
| Operation Voltage V | 3 | 3.7 | During standard use of 34mA (0.2C) | |
| Size | Prism | |||
| Energy Capacity A-hr | 0.17 | 0.18 | ||
| Impedance mΩ | 200 | Measured at 1kHz AC after 50% charge. Must be new battery tested within one week after shipment and cycled less than 5 times. | ||
| Continuous Current Charge mA | 85 | 170 | at constant 4.2V. The cut-off is 1.7mA (0.01C). 4hours for standard charge and 2.5 hours for fast charge. | |
| Continuous Current Discharge mA | 34 | 255 | Constant discharge is 0.2C with a cut-off voltage of 3V | |
| Temperature (Charging) ºC | 0 | 45 | 60±25% relative humidity. Bare Cell. | |
| Temperature (Discharging) ºC | -10 | 60 | 60±25% relative humidity. Bare Cell. | |
| Storage 1 Temperature ºC | 20 | 25 | 60±25% relative humidity at the shipment state for less than 1 year. | |
| Storage 2 Temperature ºC | 20 | 40 | 60±25% relative humidity at the shipment state for less than 3 months | |
| Width mm | 20 | |||
| Height mm | 4 | |||
| Weight g | 5 | |||
| Pieces in Pack | 1 |

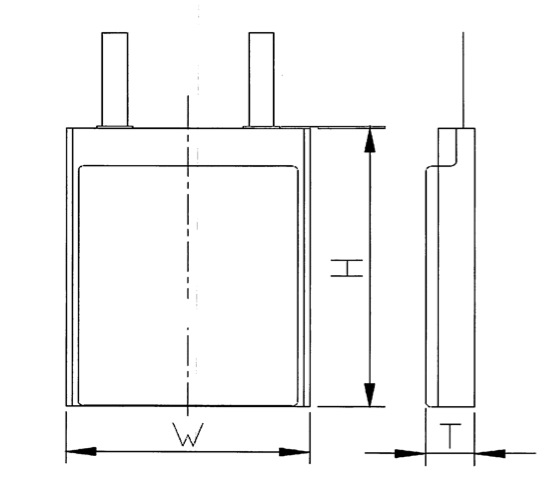

Dimension Drawing:
