Coin Cell Battery
Lithium-Manganese Dioxide (Organic Electrolyte)
Nominal Voltage: 3.0V
Minimum Characteristic Maximum Notes
Chemistry Li
Operation Voltage V 2 3
Size Cylinder
Energy Capacity A-hr 0.23 0.23
Continuous Current Discharge mA 0.2 20 Average of 1130 hours discharging into 15kΩ continuously to end-point-voltage of 2.0V.
Temperature (Discharging) ºC -20 60
Storage 1 Temperature ºC -40 60
Width mm 20 20
Height mm 3.2
Weight g 3.1

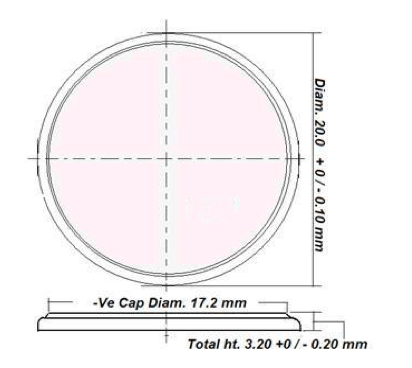

Dimension Drawing:
