Features:
lithium ion polymer
3700mAh capacity
| Minimum | Characteristic | Maximum | Notes | |
| Chemistry | Li | |||
| Operation Voltage V | 6 | 7.4 | ||
| Charging Voltage V | 8.4 | |||
| Size | Prism | |||
| Energy Capacity A-hr | 3.65 | 3.7 | ||
| Impedance mΩ | 0.22 | AC 1KHz after standard charge | ||
| Continuous Current Charge mA | 740 | 3700 | i.e 0.2C and 1C respectively | |
| Continuous Current Discharge mA | 0.74 | 3700 | i.e 0.2C and 1C respectively | |
| Temperature (Charging) ºC | 0 | 45 | ||
| Temperature (Discharging) ºC | -20 | 60 | ||
| Storage 1 Temperature ºC | -10 | 45 | less than 1 month | |
| Storage 2 Temperature ºC | -10 | 35 | less than 6 months | |
| Width mm | 13.3 | 51 | ||
| Height mm | 98.5 | |||
| Weight g | 148 | |||
| Pieces in Pack | 1 |

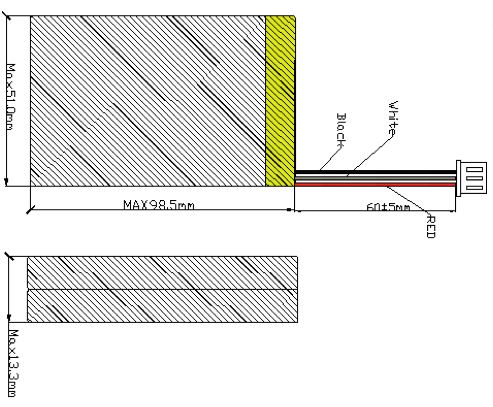

Dimension Drawing:
