BTUC-3LiCR123A-1400

Minimum Characteristic Maximum Notes
Chemistry Li
Operation Voltage V 2 3
Size Cylinder
Energy Capacity A-hr 1.4
Impedance mΩ 0.5 0.5
Continuous Current Discharge mA 45 Storage=1100mAh when discharging at 1A to 1.5V
Temperature (Discharging) ºC -40 60
Storage 1 Temperature ºC 10 25 for a storage life of 5 years
Width mm 17
Height mm 34.5
Weight g 16

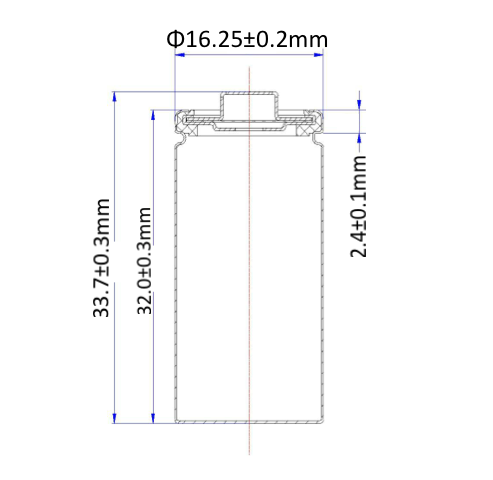

Dimension Drawing:
