Electret Condenser
Flat response
Wide temperature range
ROHS2 compliant and Halogen free
Characteristic Minimum Typical Maximum Notes
Directivity Omnidirectional
Type ECM
Sensitivity dB -27 -21 dBFS at f=1kHz, Pin=1Pa, 0dBFS=1V/Pa
S/N Ratio dB 58 f=1kHz, Pin=1Pa, (A-Weighted)
Sound Pressure Level 120
Voltage V 2.64 3.3 3.63
Current mA 1 1MHz
Frequency kHz 0.02 1 20
Temperature ºC -40 85
Mounting Surface Mount
Termination surface mount

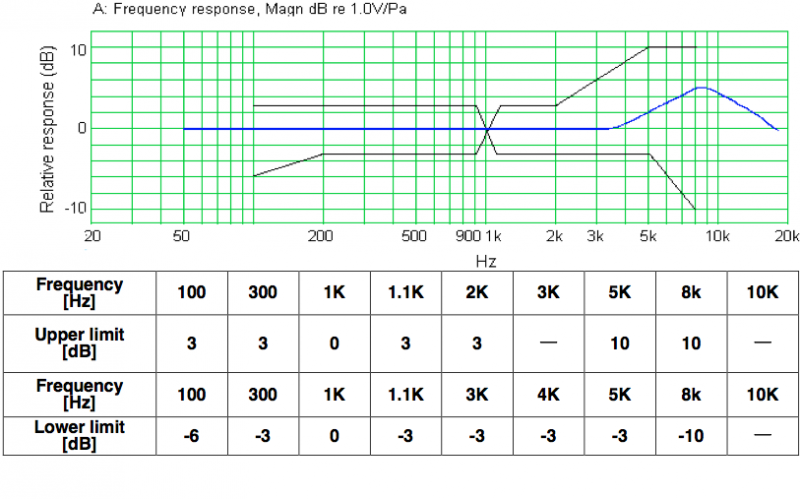

Characteristic Response:

Dimension Drawing:
