Characteristic Minimum Typical Maximum Notes
Directivity Omnidirectional
Sensitivity dB -45 -39 f=1kHz, Pin=1Pa, 0dB=1V/Pa
S/N Ratio dB 59 f=1kHz, Pin=1Pa, (A-Weighted)
Sound Pressure Level 115
Voltage V 1.5 2 3.3 Sensitivity vs. Voltage : <0.5 dB from 1.5V to 3.3V
Current mA 0.25 maximum in entire voltage range
Frequency kHz 0.1 1 20
Impedance Ω 200 f=1kHz
Width mm 3.76
Height mm 1.25
Mounting Surface Mount
Termination surface mount

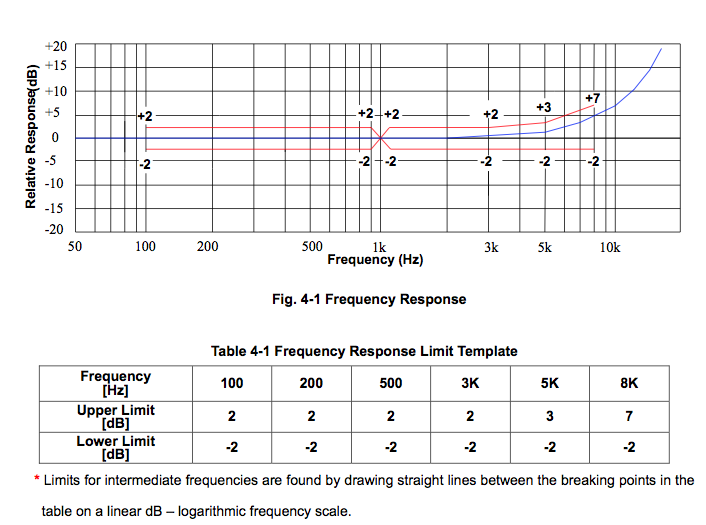

Characteristic Response:

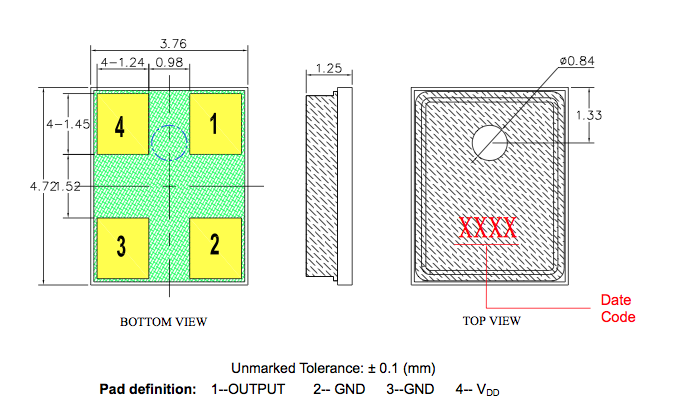

Dimension Drawing:

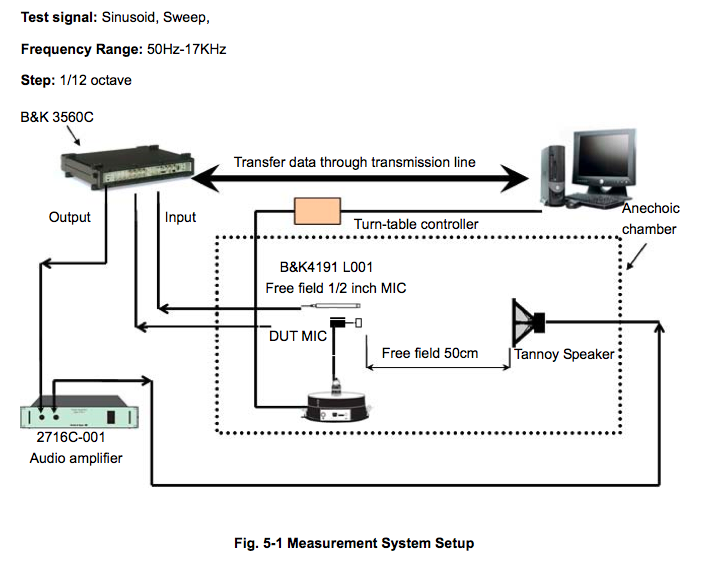

Measurement System Setup
