Features:
Microphone and Speaker Both
Dynamic
Characteristic | Minimum | Typical | Maximum | Notes |
Directivity | Unidirectional | |||
Type | Magnetic | |||
Sensitivity dB | -69 | 0dB=1v/Pa 1KHz | ||
Frequency kHz | 0.5 | 1 | 5 | see response curve |

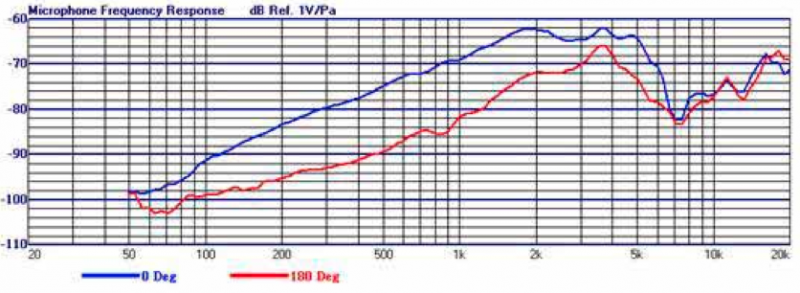

Characteristic Response:

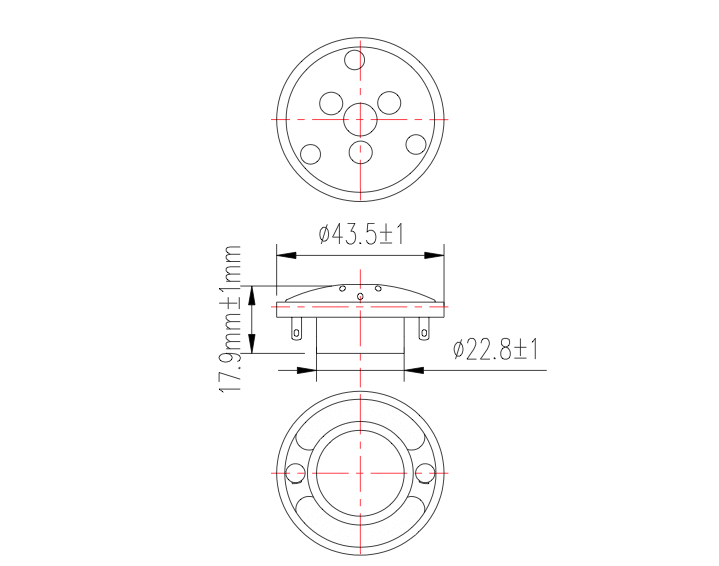

Dimension Drawing:

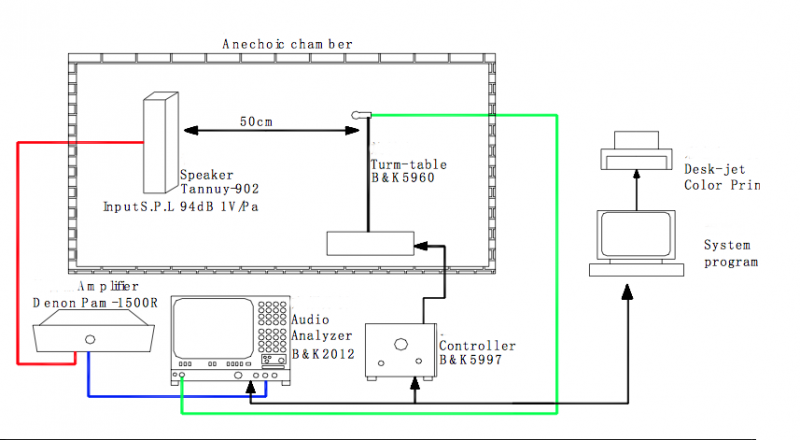

After below every test item the sensitivity to be within ±3dB from initial sensitivity for unit.
