| Characteristic | Minimum | Typical | Maximum | Notes |
| Directivity | Unidirectional | |||
| Type | ECM-Foil | |||
| Sensitivity dB | -74 | -70 | ||
| Voltage V | 2 | |||
| Current mA | 0.5 | |||
| Frequency kHz | 0.1 | 12 | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 6 | |||
| Height mm | 5.2 | |||
| Mounting | Surface Mount | |||
| Termination | surface mount |

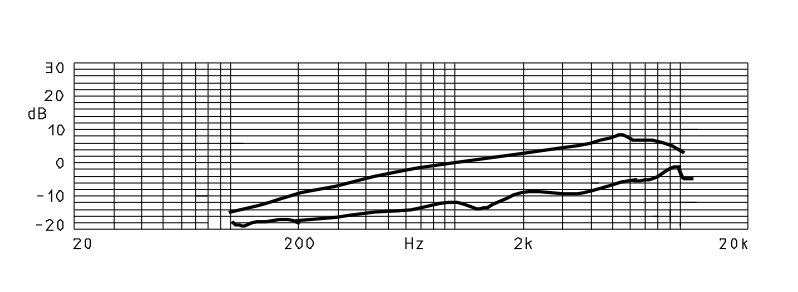

Characteristic Response:

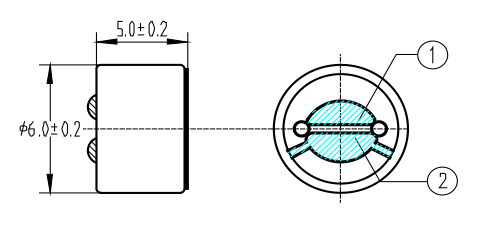

Dimension Drawing:
Internal Schematic
