MWW-9770-622-OX

Features:
Water Proof
Characteristic Minimum Typical Maximum Notes
Directivity Omnidirectional
Type ECM
Sensitivity dB -42 ±2dB (0dB=1V/1Pa; 1KHz) test conditions: Temperature:20ºC; rel humidity: between 60 & 70%; Pressure: between 86 & 106kPa
S/N Ratio dB 60 A-Curve at 1kHz; 1Pa
Sound Pressure Level 110
Voltage V 1 4.5 10
Current mA 0.6
Impedance Ω 2200
Temperature ºC 5 35 Temperature range of test
Relative Humidity % 45 85
Width mm 9.7
Height mm 6.7

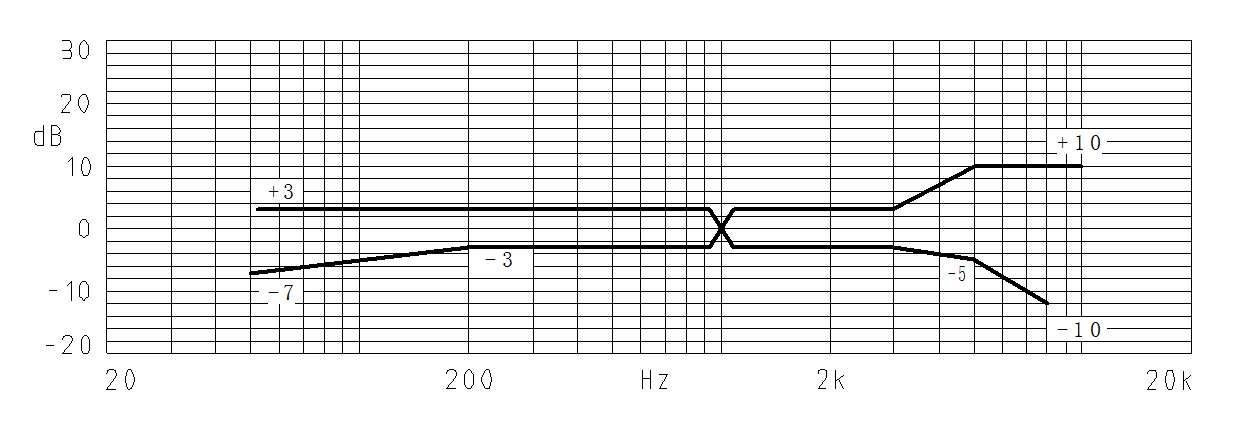

Characteristic Response:

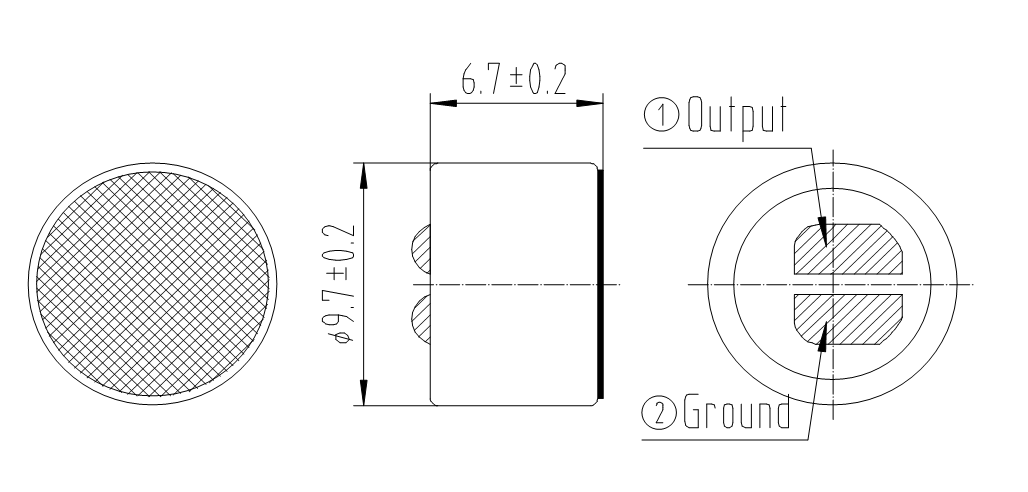

Dimension Drawing:
