| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB | 114 | Measured 114±3dB(SPL). Frequencies:1kHz IEC318 0.126 V | ||
| Power mW | 10 | 20 | ||
| Frequency kHz | 1 | |||
| Available Input Impedance Ω | 16 | |||
| Width mm | 8.7 | |||
| Height mm | 4.6 |

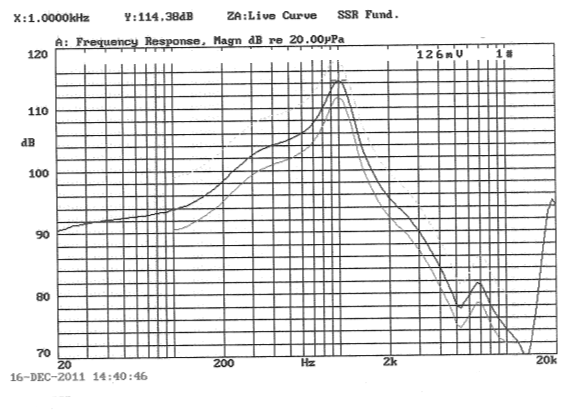

Characteristic Response:

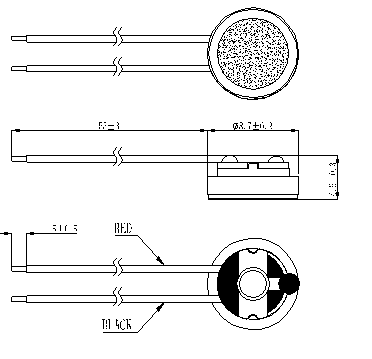

Dimension Drawing:
