![](https://www.east-elec.com/sites/default/files/sounder/11_0.png)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 106.5 | Measured 96 dB at 12V-DC & 100cm | ||
Frequency kHz | 2.4 | 2.9 | 3.4 | Rated frequency ±0.5 |
Voltage V | 4 | 12 | 28 | DC |
Current mA | 30 | 12V DC | ||
Temperature ºC | -20 | 70 | ||
Width mm | 41.8 | |||
Height mm | 25.4 | |||
Termination | lead wire |

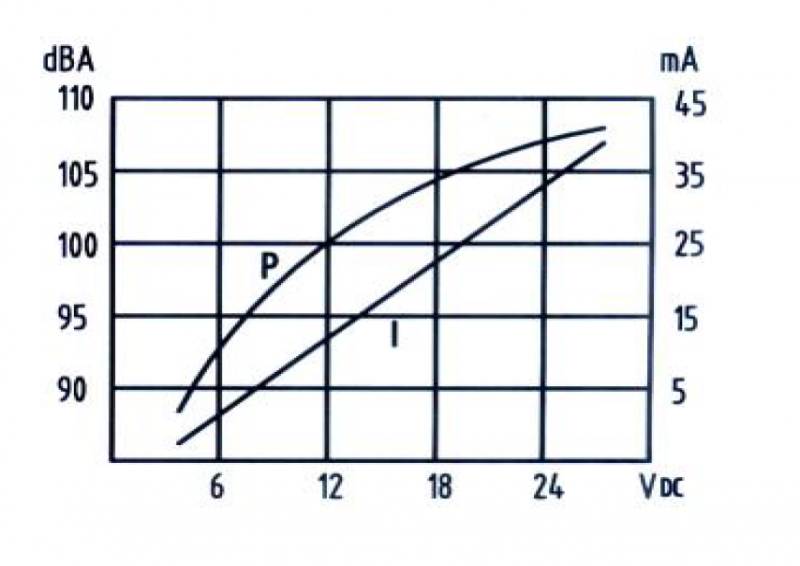

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/aaa_0_1.png)

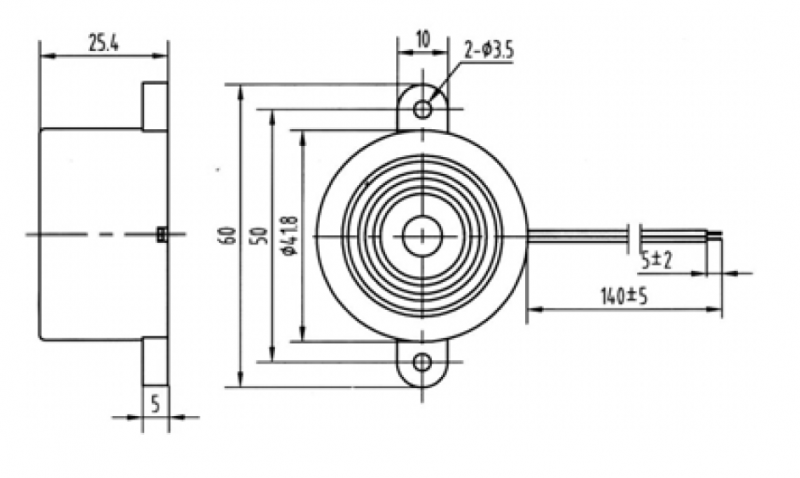

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/111_0.png)
