EFM-236MFL

Characteristic Min Typical Max Notes
Type Piezo
Excitation Internal Driven Tone: Continuous
Sound Pressure Level dB at 30cm 106.5 Measured 96 dB at 12V-DC & 100cm
Frequency kHz 2.4 2.9 3.4 Rated frequency ±0.5
Voltage V 4 12 28 DC
Current mA 30 12V DC
Temperature ºC -20 70
Width mm 41.8
Height mm 25.4
Termination lead wire

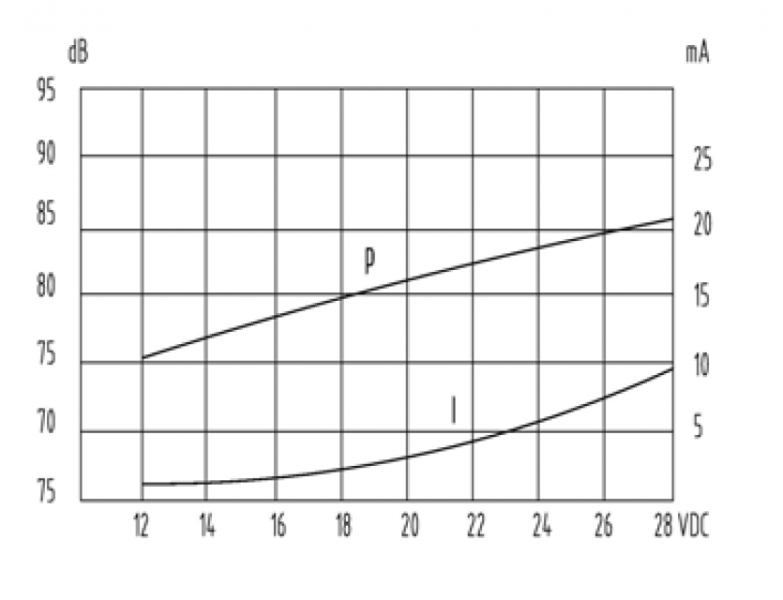

Characteristic Response:

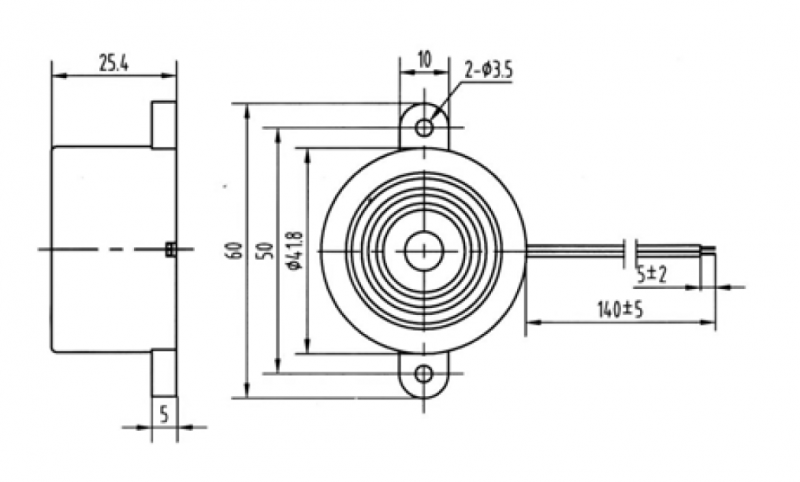

Dimension Drawing:
