Features:
SMT inside
Small size
Low current consumption
![](https://www.east-elec.com/sites/default/files/sounder/p04_05_1_0_0.jpg)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 75.46 | Measured 85 dB at 10cm | ||
Frequency kHz | 4 | Rated frequency ± 0.5 kHz | ||
Voltage V | 6 | 12 | 16 | DC voltage |
Current mA | 8 | |||
Temperature ºC | -20 | 60 | ||
Width mm | 14.1 | Case:PC/Black | ||
Height mm | 8 | |||
Weight g | 1.3 | |||
Termination | pin | Pin separation: 7.60mm |

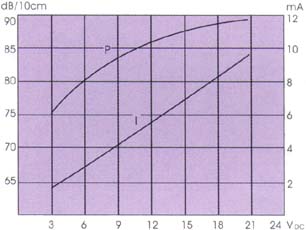

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/p04_05_3_0_0.jpg)

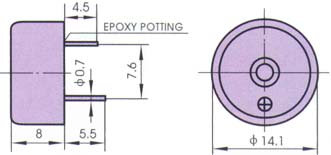

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/p04_05_2_0_0.jpg)
