Features:
Small size
Low height and light weight
Easy mounting
High reliability
![](https://www.east-elec.com/sites/default/files/sounder/p04_09_1_0_0.jpg)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 85 | Measured 85 dB at 30cm | ||
Frequency kHz | 3.5 | Rated frequency ± 0.5 kHz | ||
Voltage V | 3 | 12 | 24 | DC voltage |
Current mA | 10 | |||
Temperature ºC | -20 | 70 | ||
Width mm | 23 | Case:PC/Black | ||
Height mm | 9.8 | |||
Weight g | 3.5 | |||
Termination | lead wire |

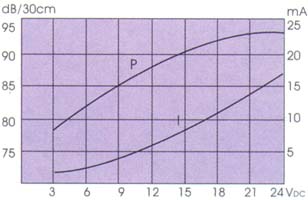

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/p04_09_3_0_0.jpg)

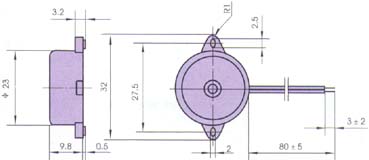

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/p04_09_2_0_0.jpg)
