Features:
High output
Sealed type
High reliability
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 108 | Measured 108 dB at 30cm | ||
| Frequency kHz | 2.5 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 5 | 12 | 13 | DC voltage |
| Current mA | 75 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 50 | Case:ABS/Black | ||
| Height mm | 29 | |||
| Weight g | 28 | |||
| Termination | pin | Pin separation: 22.50mm |

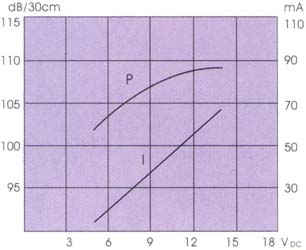

Characteristic Response:
Dimension Drawing:
