Features:
Can Bear Soldering Temperature
Loud output
Low current consumption
High efficiency and reliability
PCB mounting & Sealed type
![](https://www.east-elec.com/sites/default/files/sounder/p05_07_1_0.jpg)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | External Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 105 | Measured 85 dB at 300cm | ||
Frequency kHz | 3.6 | Rated frequency ± 0.5 kHz | ||
Voltage V | 7 | 9 | 12 | peak to peak voltage of square wave |
Current mA | 10 | |||
Temperature ºC | -20 | 70 | ||
Width mm | 40 | Case:Fire-resistance ABS/Black | ||
Height mm | 11 | |||
Weight g | 10.9 | |||
Termination | pin |
Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/p05_07_4a_0.gif)

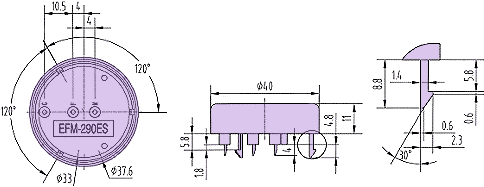

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/p05_07_2b_0_0.gif)
Driver Circuit
![](https://www.east-elec.com/sites/default/files/sounder/p05_07_3a_0.gif)
