Features:
High output
Sealed type
High reliability
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Siren | ||
| Sound Pressure Level dB at 30cm | 100 | Measured 100 dB at 30cm | ||
| Voltage V | 6 | 9 | 12 | DC voltage |
| Current mA | 120 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 42 | Case:ABS/Black | ||
| Height mm | 18 | |||
| Weight g | 20 | |||
| Termination | lead wire |
Characteristic Response:

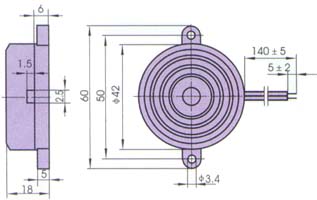

Dimension Drawing:
