Features:
High output
Sealed type
High reliability
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Siren | ||
Sound Pressure Level dB at 30cm | 96 | Measured 96 dB at 30cm | ||
Voltage V | 3 | 6 | 9 | DC voltage |
Current mA | 80 | |||
Temperature ºC | -20 | 70 | ||
Width mm | 42 | Case:ABS/Black | ||
Height mm | 18 | |||
Weight g | 20 | |||
Termination | lead wire |
Characteristic Response:

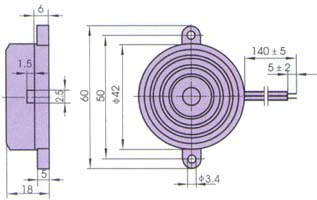

Dimension Drawing:
