Features:
Low voltage
High output
Low current consumption
![](https://www.east-elec.com/sites/default/files/sounder/p04_16_1_0.jpg)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 100.46 | Measured 90 dB at 100cm | ||
Frequency kHz | 3.5 | Rated frequency ± 0.5 kHz | ||
Voltage V | 3 | 12 | 20 | DC voltage |
Current mA | 10 | |||
Temperature ºC | -20 | 70 | ||
Width mm | 30 | Case:PC/Black | ||
Height mm | 20 | |||
Weight g | 8.9 | |||
Termination | pin | Pin separation: 15.00mm |

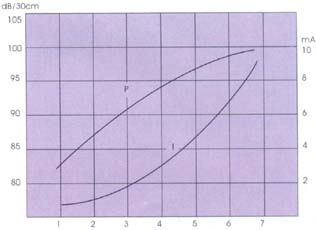

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/p04_16_4_0.jpg)
Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/p04_16_2_0.jpg)
