Features:
Low consumption
Continuous and fast pulsing tone
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous + Pulse(2.5Hz±20%) | ||
| Sound Pressure Level dB at 30cm | 80 | Measured 80 dB at 30cm | ||
| Frequency kHz | 3.5 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 3 | 12 | 16 | DC voltage |
| Current mA | 3 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 30 | Case:PC/Black | ||
| Height mm | 19.5 | |||
| Weight g | 8.6 | |||
| Termination | pin | Pin separation: 17.50mm |

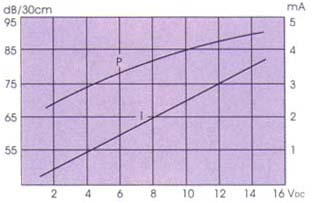

Characteristic Response:

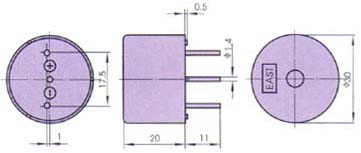

Dimension Drawing:
