Features:
Low consumption
Flange mounting with sire leads
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 85 | Measured 85 dB at 30cm | ||
| Frequency kHz | 4.5 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 3 | 12 | 30 | DC voltage |
| Current mA | 3 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 22 | Case:ABS/Black | ||
| Height mm | 10.8 | |||
| Weight g | 3.5 | |||
| Termination | lead wire |
Characteristic Response:

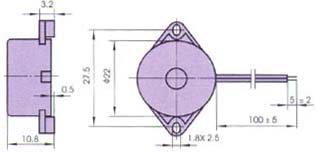

Dimension Drawing:
