Loud output
Low current consumption
High efficiency and reliability
PCB mounting
Characteristic Min Typical Max Notes
Type Piezo
Excitation Internal Driven Tone: N/A
Sound Pressure Level dB at 30cm 95 Measured 95 dB at 30cm
Frequency kHz 3.2 Rated frequency ± 0.5 kHz
Voltage V 2 3 7 DC voltage
Current mA 30
Temperature ºC -20 60
Width mm 40 Case:ABS/Black
Height mm 20
Weight g 12.5
Termination pin Pin separation: 18.00mm
Characteristic Response:

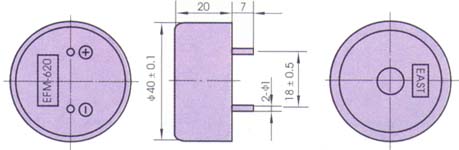

Dimension Drawing:
