Wide Frequency range
Rich Sound
Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 75.46 Measured 85 dB at 10cm
Frequency kHz 0.73
Voltage V 3 5 5 peak to peak voltage of square wave
Current mA 80
Temperature ºC -40 85
Width mm 24.7
Height mm 12.5
Termination pin

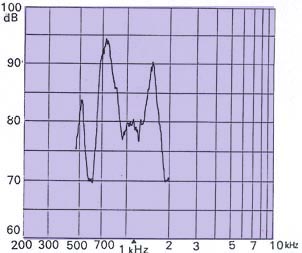

Characteristic Response:

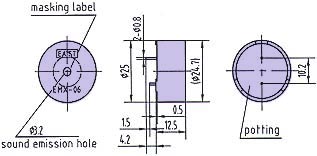

Dimension Drawing:
