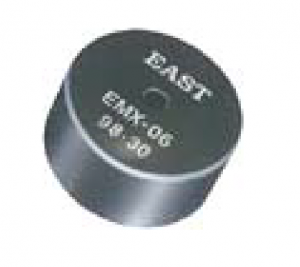

EMX-06A

Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 75.5 Measured 85 dB at 6V & 10cm
Frequency kHz 1 1 1
Voltage V 3 6 7
Current mA 75 1000Hz ; 12V p-p Square Wave 6V DC
Temperature ºC -40 85
Width mm 25
Height mm 12.5
Termination pin Pin separation: 10.20mm

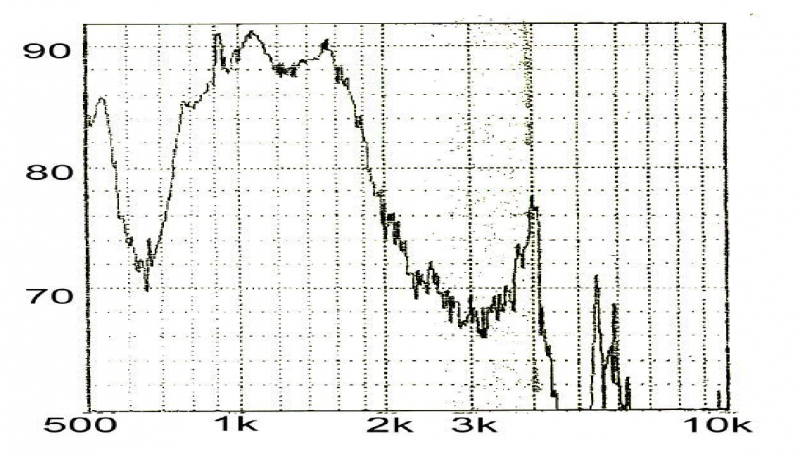

Characteristic Response:

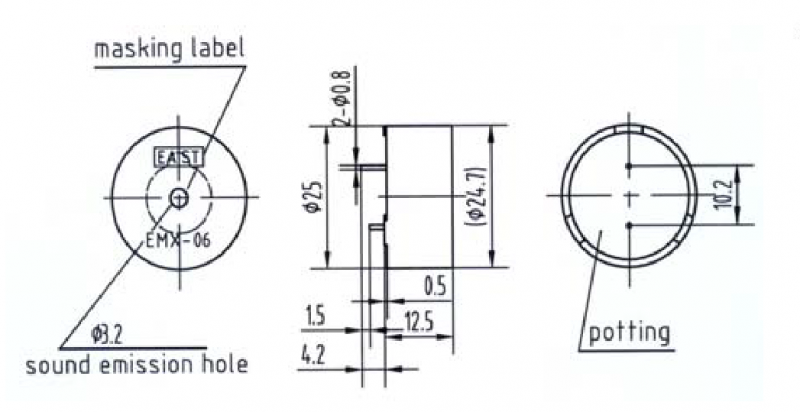

Dimension Drawing:
