| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 85.5 | Measured 95 dB at 12V-DC & 10cm | ||
| Frequency kHz | 0.24 | 0.3 | 0.38 | Rated frequency ±0.08 |
| Voltage V | 7 | 12 | 16 | DC |
| Current mA | 35 | 12V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 26.2 | |||
| Height mm | 19.2 | |||
| Termination | lead wire |

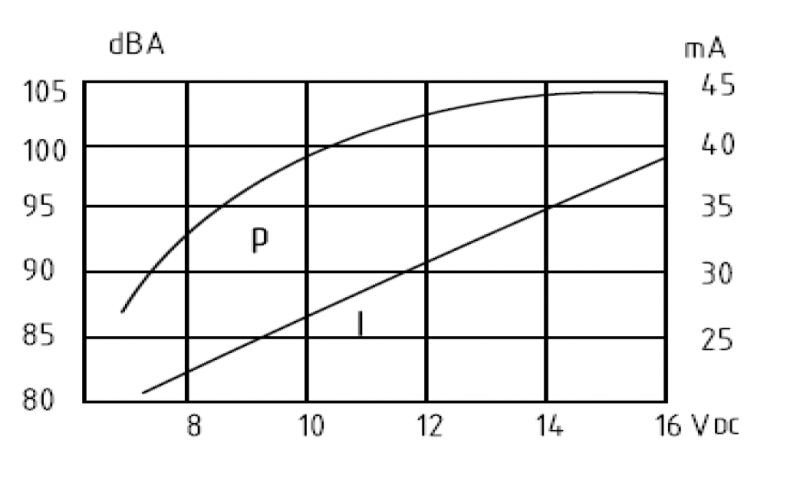

Characteristic Response:

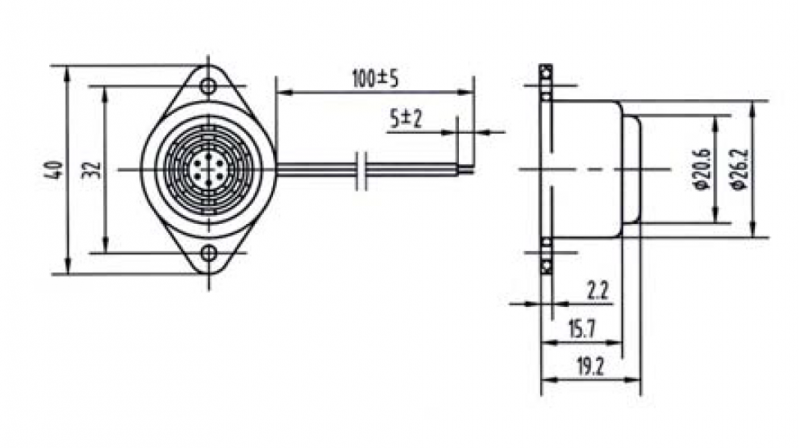

Dimension Drawing:
