| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 85.45 | Measured 95dB/24VDC/10cm | ||
| Frequency kHz | 0.4 | ±0.1 kHz | ||
| Voltage V | 20 | 24 | 28 | DC |
| Current mA | 35 | 24VDC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 26 | 26 | ||
| Height mm | 19.7 | |||
| Weight g | 16 | |||
| Mounting | Panel Mount | |||
| Termination | pin | Pin separation: 9.50mm |

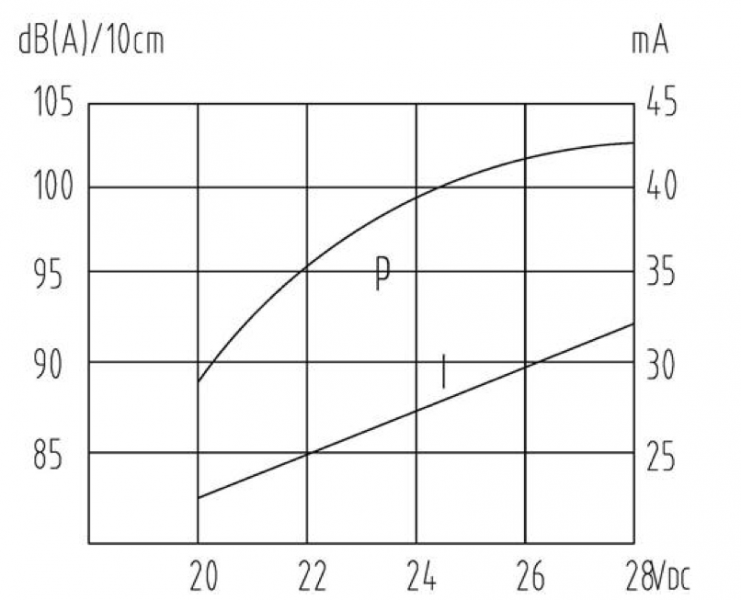

Characteristic Response:

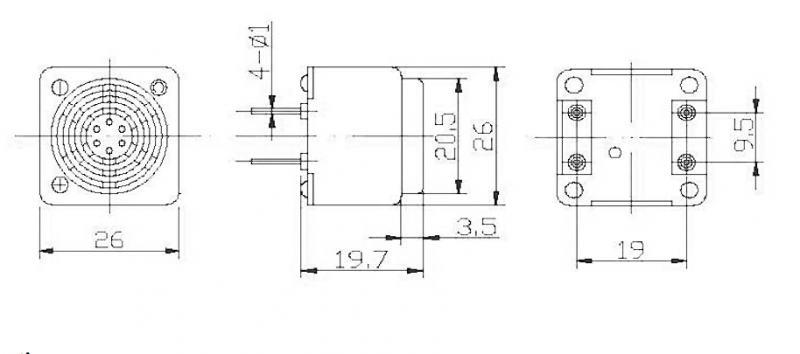

Dimension Drawing:

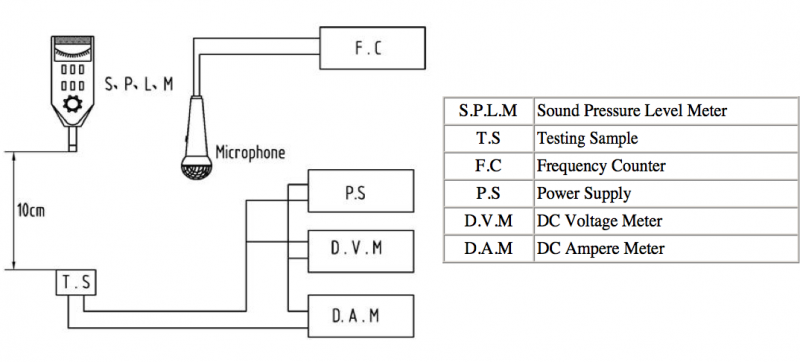

Electrical Test
