| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 70.5 | Measured 80 dB at 3V-DC & 10cm | ||
| Frequency kHz | 2.3 | 2.7 | 3.1 | Rated frequency ±0.4 |
| Voltage V | 2.5 | 3 | 4 | DC |
| Current mA | 40 | 3V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 9 | |||
| Height mm | 5.5 | |||
| Termination | pin | Pin separation: 5.00mm |

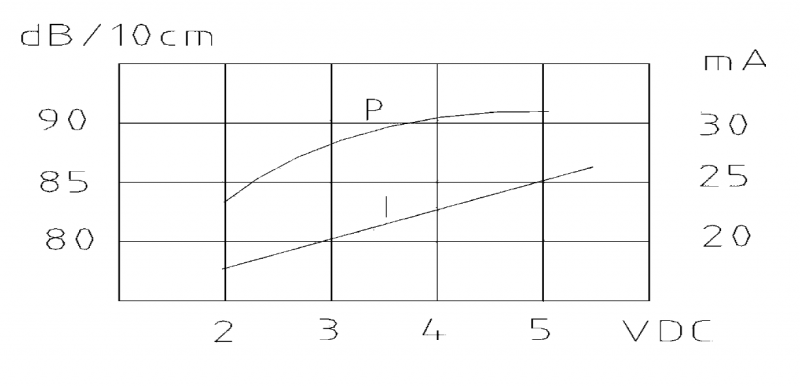

Characteristic Response:

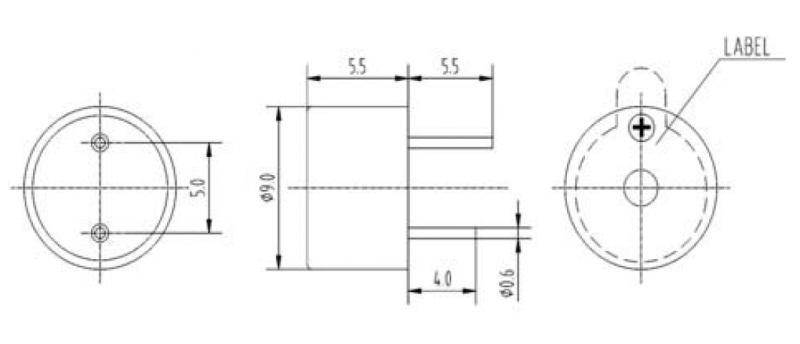

Dimension Drawing:
