| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75.5 | Measured 85 dB at 5V & 10cm | ||
| Frequency kHz | 3.1 | 3.1 | 3.1 | |
| Voltage V | 4 | 5 | 6 | |
| Current mA | 80 | 3100Hz ; 10V p-p Square Wave 5V DC | ||
| Temperature ºC | -25 | 55 | ||
| Width mm | 9 | |||
| Height mm | 4.5 | |||
| Termination | pin | Pin separation: 4.00mm |

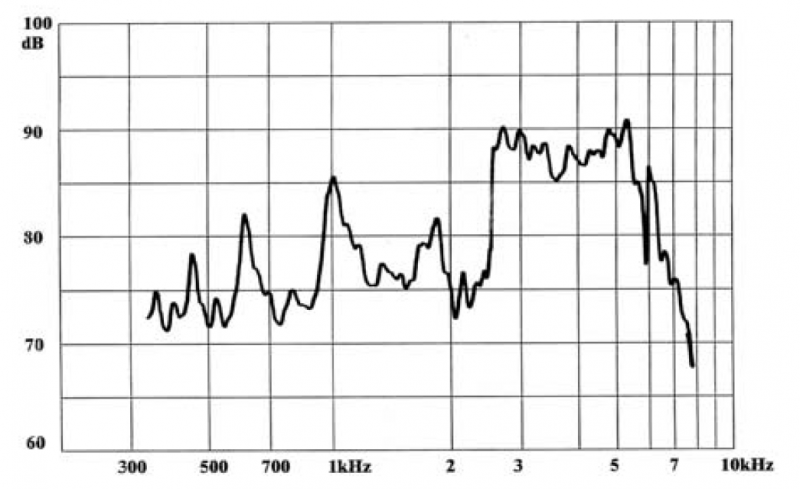

Characteristic Response:

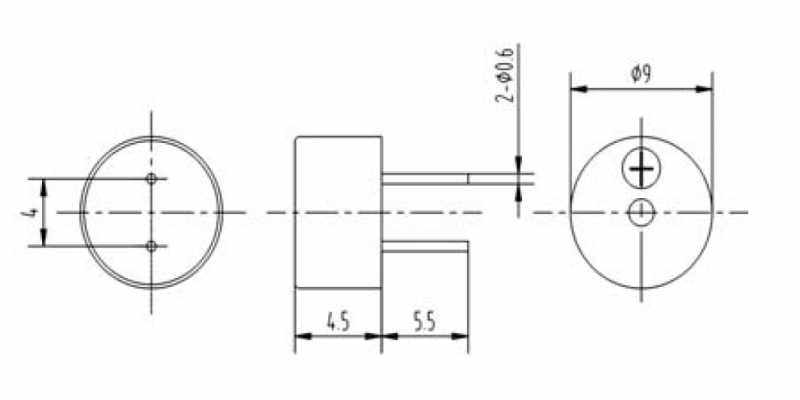

Dimension Drawing:
