Features:
Low current consumption
Trigger control terminal
Pin terminals for direct mounting on P.C Board
![](https://www.east-elec.com/sites/default/files/sounder/p10_02_1_0_0.jpg)
Characteristic | Min | Typical | Max | Notes |
Type | Magnetic | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 66.48 | Measured 70 dB at 20cm | ||
Frequency kHz | 0.4 | Rated frequency ± 0.1 kHz | ||
Voltage V | 1 | 24 | 30 | DC voltage |
Current mA | 14 | |||
Temperature ºC | -40 | 85 | ||
Width mm | 22.5 | |||
Height mm | 14.6 | |||
Weight g | 9 | |||
Termination | pin |
Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/p10_02_3_0_0.jpg)

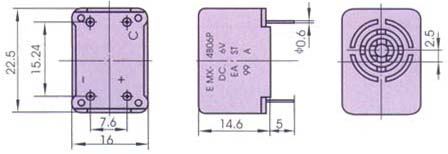

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/p10_02_2_0_0.jpg)
