Features:
Low current consumption
Compact
Rich sound
![](https://www.east-elec.com/sites/default/files/sounder/p10_04_1_0_0.jpg)
Characteristic | Min | Typical | Max | Notes |
Type | Magnetic | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 66.48 | Measured 70 dB at 20cm | ||
Frequency kHz | 0.4 | Rated frequency ± 0.1 kHz | ||
Voltage V | 7 | 12 | 17 | DC voltage |
Current mA | 20 | |||
Temperature ºC | -40 | 80 | ||
Width mm | 33 | |||
Height mm | 14.5 | |||
Weight g | 10 | |||
Termination | lead wire |
Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/p10_04_3_0_0.jpg)

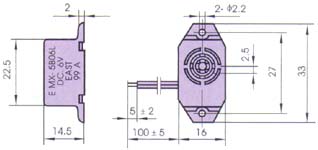

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/p10_04_2_0_0.jpg)
