| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 83.5 | Measured 73 dB at 3V-DC & 100cm | ||
| Frequency kHz | 0.3 | 0.4 | 0.5 | Rated frequency ± .1 |
| Voltage V | 2 | 3 | 5 | DC |
| Current mA | 20 | 3V DC | ||
| Temperature ºC | -40 | 70 | ||
| Width mm | 26.4 | |||
| Height mm | 17.6 | |||
| Termination | lead wire |

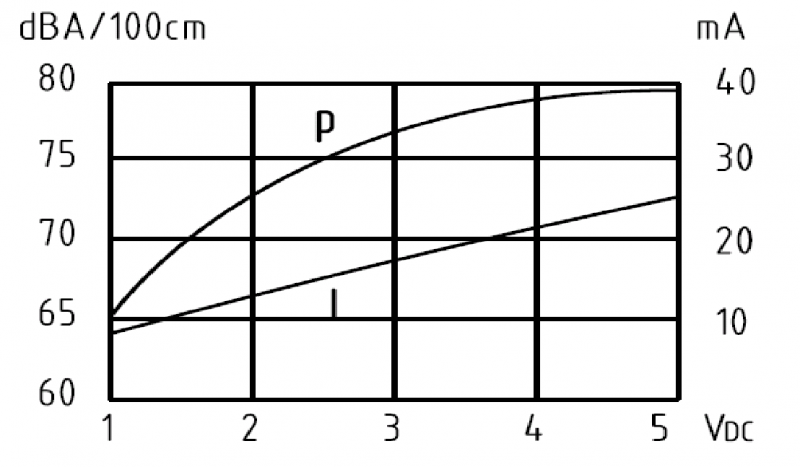

Characteristic Response:

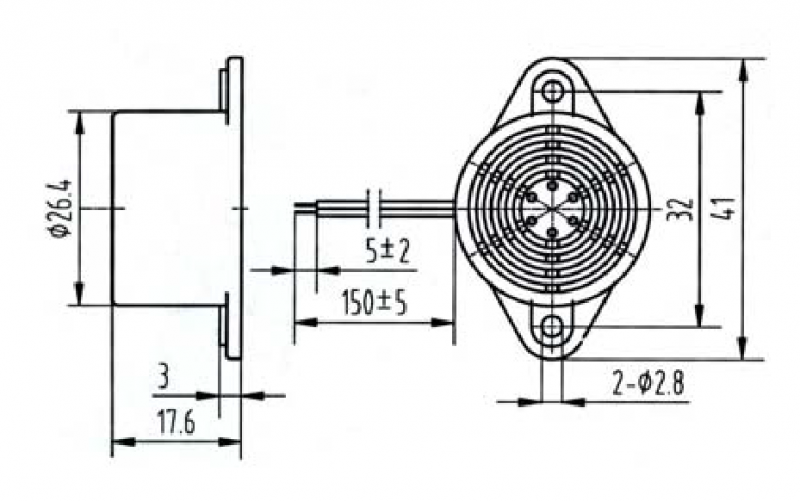

Dimension Drawing:
