Low frequency
Low voltage
Small and slim size
Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 76.46 Measured 86 dB at 10cm
Frequency kHz 2.4
Voltage V 4 6 8 peak to peak voltage of square wave
Current mA 40
Available Input Impedance Ω 45 ± 5
Temperature ºC -25 70
Width mm 12
Height mm 9.5
Weight g 1.7
Termination pin
Characteristic Response:

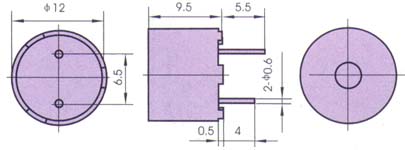

Dimension Drawing:
