| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 76.5 | Measured 86 dB at 12V & 10cm | ||
| Frequency kHz | 2.05 | 2.05 | 2.05 | |
| Voltage V | 7 | 12 | 16 | |
| Current mA | 50 | 2048Hz ; 24V p-p Square Wave 12V DC | ||
| Temperature ºC | -25 | 70 | ||
| Width mm | 12 | |||
| Height mm | 7.5 | |||
| Termination | pin | Pin separation: 6.50mm |

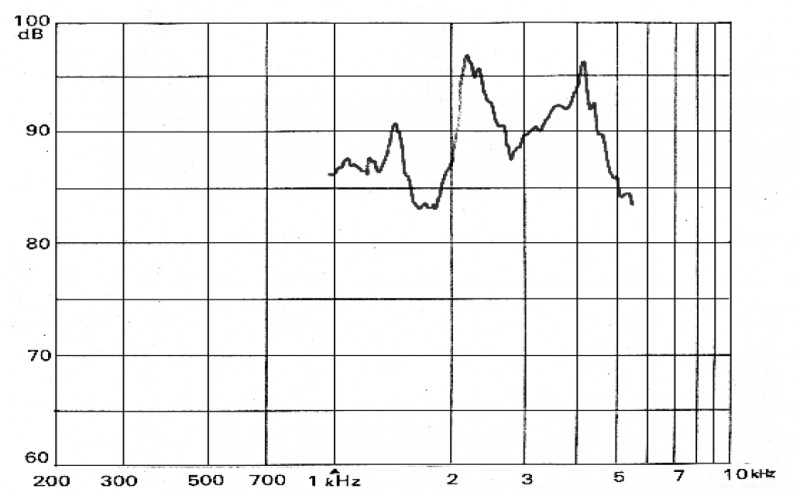

Characteristic Response:

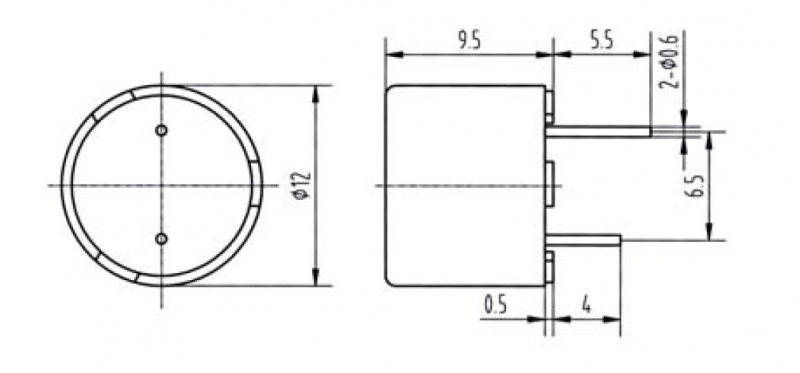

Dimension Drawing:
