| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75.5 | Measured 85 dB at 5V & 10cm | ||
| Frequency kHz | 4 | 4 | 4 | |
| Voltage V | 2 | 5 | 15 | |
| Current mA | 80 | 4000Hz ; 10V p-p Square Wave 5V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 12 | |||
| Height mm | 9.8 | |||
| Termination | pin | Pin separation: 6.50mm |

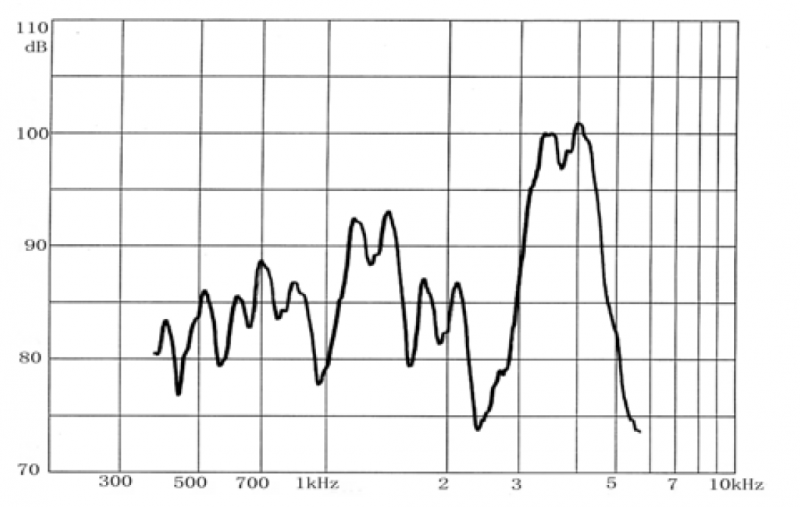

Characteristic Response:

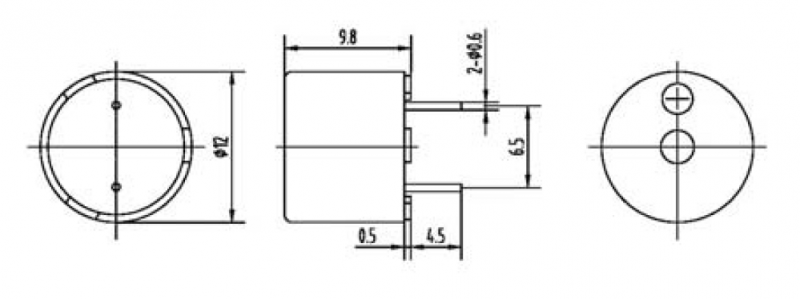

Dimension Drawing:
