Low frequency
Low voltage
Small and slim size
Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 70.46 Measured 80 dB at 10cm
Frequency kHz 2.05
Voltage V 1 1.5 3 peak to peak voltage of square wave
Current mA 12
Available Input Impedance Ω 27 ± 3
Temperature ºC -25 70
Width mm 16
Height mm 14
Weight g 5
Termination pin
Characteristic Response:

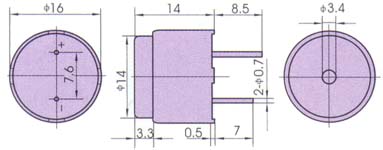

Dimension Drawing:
