Features:
Low frequency
Low voltage
Small and slim size
Characteristic | Min | Typical | Max | Notes |
Type | Magnetic | |||
Excitation | External Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 75.46 | Measured 85 dB at 10cm | ||
Frequency kHz | 2.05 | |||
Voltage V | 4 | 6 | 8 | peak to peak voltage of square wave |
Current mA | 40 | |||
Available Input Impedance Ω | 50 | ± 5 | ||
Temperature ºC | -25 | 70 | ||
Width mm | 16 | |||
Height mm | 14 | |||
Weight g | 5 | |||
Termination | pin |
Characteristic Response:

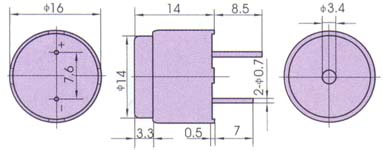

Dimension Drawing:
