Low frequency
Low voltage
Small and slim size
Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 75.46 Measured 85 dB at 10cm
Frequency kHz 2.73
Voltage V 1 1.5 2 peak to peak voltage of square wave
Current mA 80
Available Input Impedance Ω 5.5 ± 2
Temperature ºC -20 80
Width mm 9.6
Height mm 5
Weight g 0.8
Termination pin
Characteristic Response:

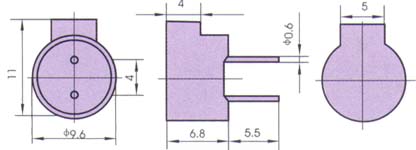

Dimension Drawing:
