FM-12D-900

Characteristic Min Typical Max Notes
Type Piezo
Excitation Internal Driven Tone: Continuous
Sound Pressure Level dB at 30cm 100 Measured 100 dB at 12 V-DC & 30cm
Frequency kHz 2.7 3.2 3.7 Rated frequency ±0.5
Voltage V 3 12 20 DC
Current mA 20 12V DC
Temperature ºC -20 70
Width mm 43.5
Height mm 34.5
Termination pin Pin separation: 32.00mm

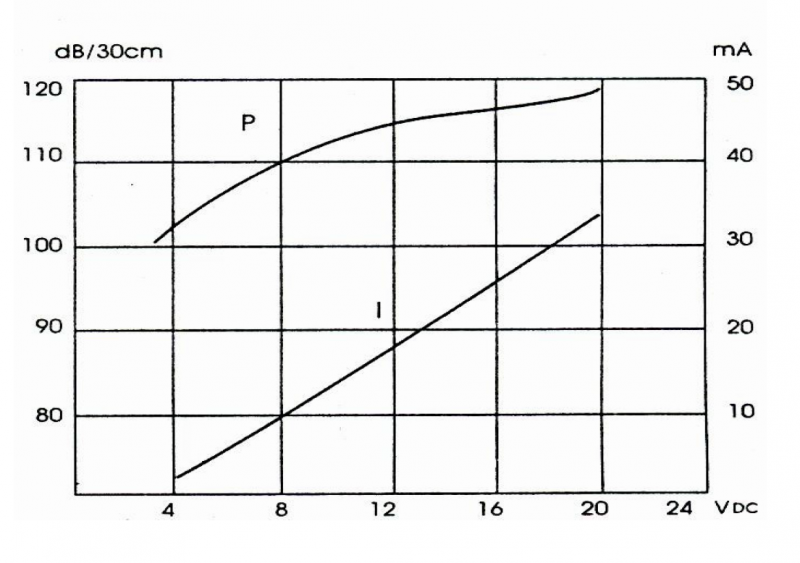

Characteristic Response:

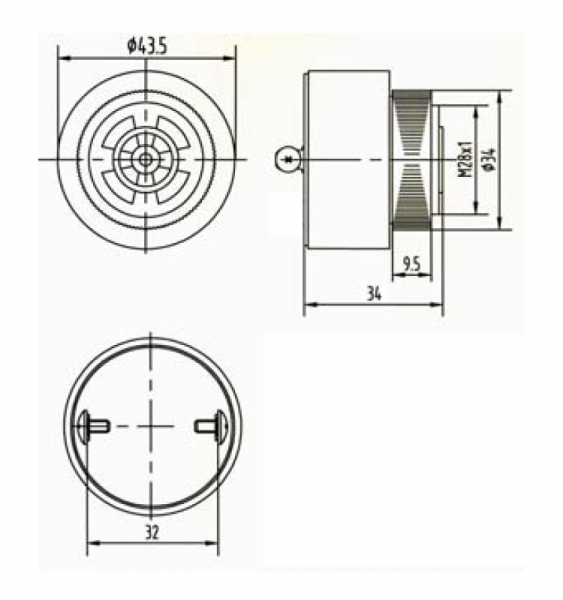

Dimension Drawing:
