Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 90 | Measured 90 dB at 12V-DC & 30cm | ||
Frequency kHz | 2.5 | 3 | 3.5 | Rated frequency ±0.5 |
Voltage V | 5 | 12 | 28 | DC |
Current mA | 10 | 12V DC | ||
Temperature ºC | -20 | 70 | ||
Width mm | 42 | |||
Height mm | 26 | |||
Termination | pin | Pin separation: 14.00mm |

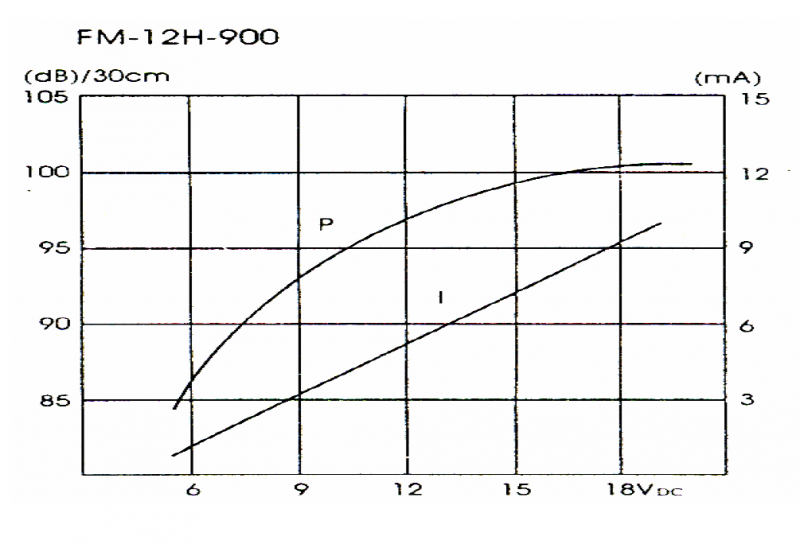

Characteristic Response:

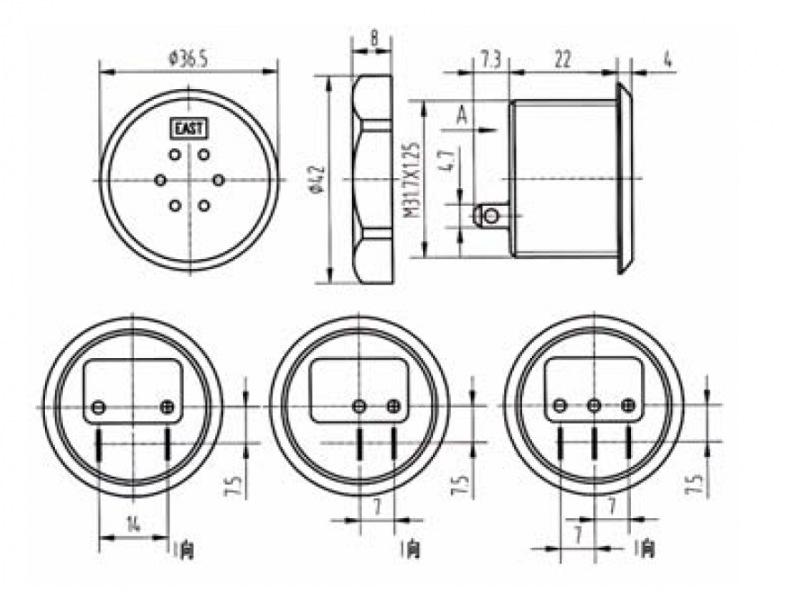

Dimension Drawing:
