FM-12Q-901B

Characteristic Min Typical Max Notes
Type Piezo
Excitation Internal Driven Tone: Continuous
Sound Pressure Level dB at 30cm 106 Measured ≥70 dB at 6V-DC & 60cm AND ≤100 dB at 25V-DC & 60cm
Frequency kHz 2.4 2.9 3.4 Rated frequency ±0.5
Voltage V 6 25 25 DC
Current mA 6 40 ; 25VDC 6V DC
Temperature ºC -20 70
Width mm 36.1
Height mm 34.6
Termination pin Pin separation: 25.20mm

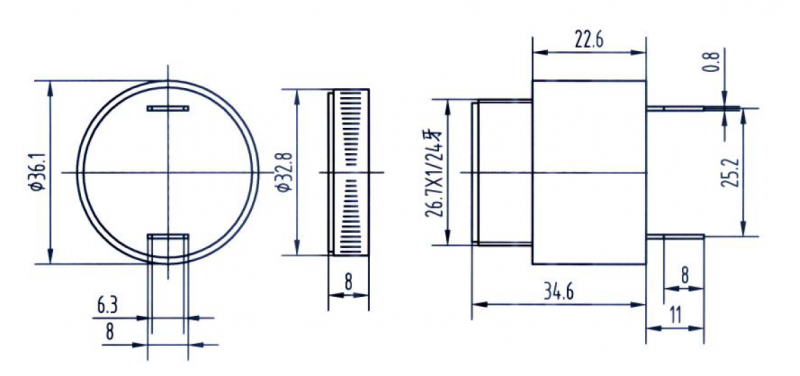

Dimension Drawing:
