![](https://www.east-elec.com/sites/default/files/sounder/1_61_0.png)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 86 | Measured 80 dB at 48V-DC & 60cm | ||
Frequency kHz | 2.4 | 2.9 | 3.4 | Rated frequency ±0.5 |
Voltage V | 38 | 48 | 58 | DC |
Current mA | 20 | 48V DC | ||
Temperature ºC | -20 | 70 | ||
Width mm | 43 | |||
Height mm | 32.8 | |||
Termination | pin | Pin separation: 7.50mm |

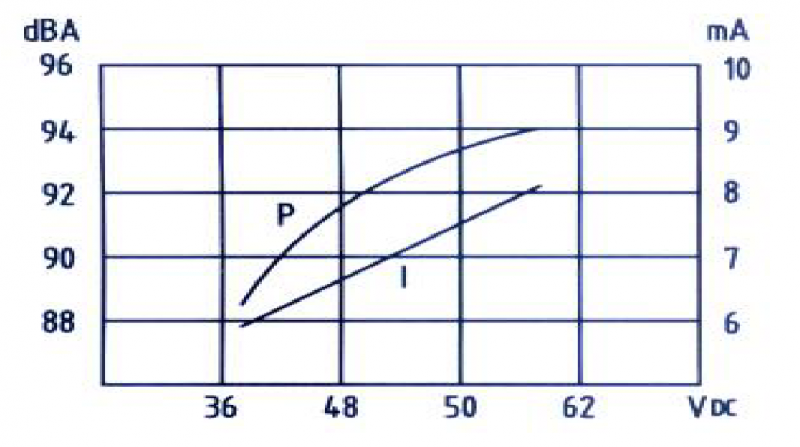

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/3_64_0.png)

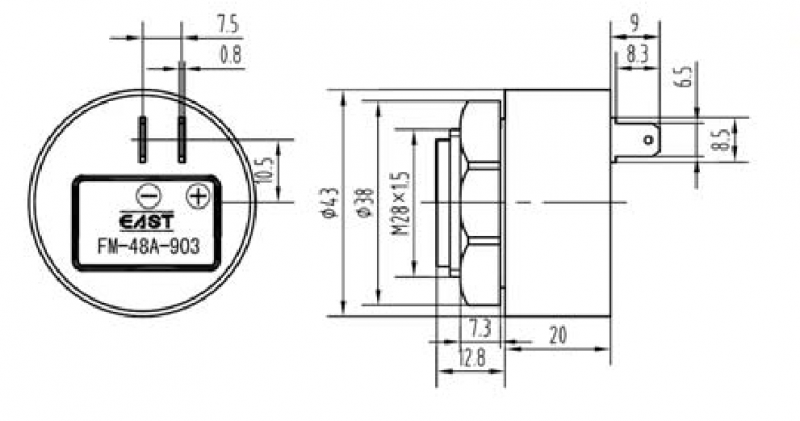

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/2_67_0.png)
