| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 85 | depends on housing and enclosure. | ||
| Frequency kHz | 4.6 | Rated frequency ± 0.5 kHz | ||
| Input Capacitance nF | 20 | Rated Capacitance ± 30% | ||
| Width mm | 27 | |||
| Height mm | 0.25 | |||
| Termination | lead wire |

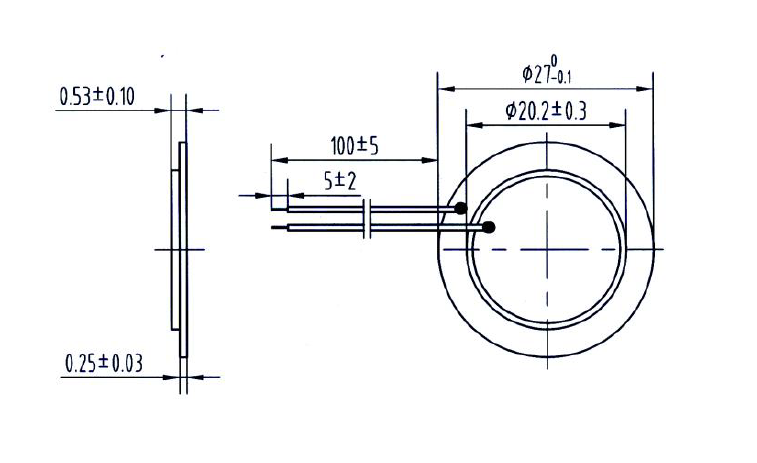

Dimension Drawing:
