Loud output
Low current consumption
High efficiency and reliability
PCB mounting
Sealed type
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 85 Measured 85 dB at 30cm
Frequency kHz 3.4 Rated frequency ± 0.5 kHz
Voltage V 6 9 12 peak to peak voltage of square wave
Current mA 10
Temperature ºC -20 70
Width mm 40.1 Case:ABS/White
Height mm 20.3
Weight g 7
Termination pin

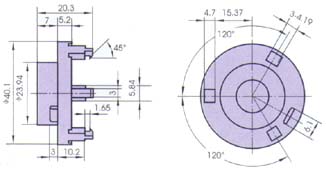

Dimension Drawing:

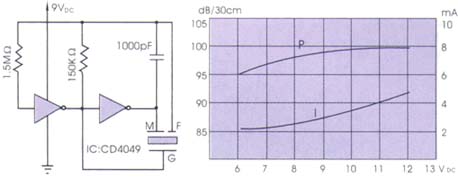

Driver Circuit
